AcoustiScore^®
Acoustic Scoring Systems

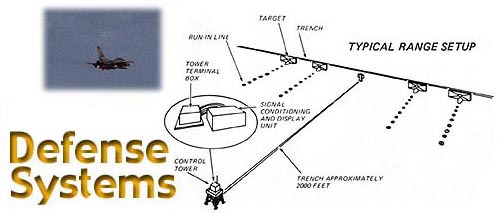

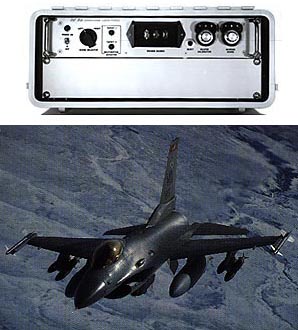

Provide realistic weapons training. Consisting of acoustic transducer sensors and a Data Reception and Display Unit, the system senses the shock waves from passing projectiles and converts these waves into electronic signals for miss-distance measurement and display.

The DA-3 Strafe Scoring System enables pilots to determine automatic weapons firing accuracy. A typical strafe range utilizes four targets. When the projectiles penetrate a predetermined, adjustable scoring zone, a count is displayed and transmitted to the pilot.

Applications

• Close Air Support / Fighter / Attack Aircraft
• Helicopter Gunships

Projectile Sizes
7.62 mm, 20 mm, 30 mm and larger.

Maximum Scoring Rate
15,000 rounds per minute

Maximum Scoring Error
+-5%

Scoring Area
200 to 400 sq. ft.

Customers
Over 150 Model DA-3 air-to-ground strafe scoring systems are installed in the U.S. and in 20 free-world nations.

• U.S. Navy (10)
• U.S. Army (3)
• U.S. Air Force (110)
• Brazilian Air Force (4)
• Canadian Air Force
• Chilean Air Force
• Chinese (Taiwan) Air Force
• German Air Force
• German Army
• Israeli Air Force
• Italian Air Force
• Japanese Air Force
• Kenyan Air Force
• Korean Air Force
• Korean Army
• Portuguese Air Force
• Royal Australian Air Force
• Royal Australian Army
• Royal Jordanian Air Force
• Royal Saudi Air Force (2)
• Royal Thai Air Force (4)
• Singapore Air Force
• Spanish Air Force
• Tunisian Air Force
