HYDRA SET®
Precision Load Positioner

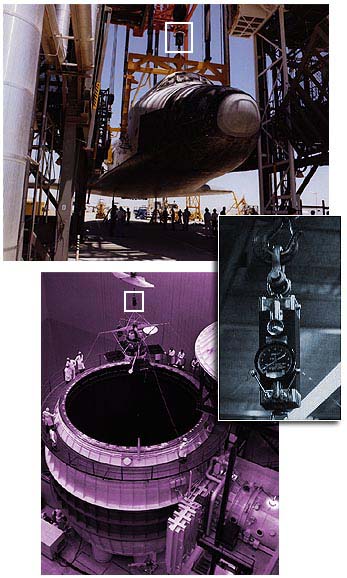

Installed
between the crane (or hoist) and the load, Hydra-Set is a valuable
positioning device that enables the operator to place heavy
objects from 1/2-ton up to 250 tons with .001 in. precision.
Major benefits are reduced rework costs due to damaged loads,
increased labor efficiency, improved production time and less
downtime.
See
Hydra Set in action...
Click
here to view a
streaming quicktime movie.
(3 megs) Requires:
Other
key features:
- Acts as an auxiliary
crane control for shock absorption.
- Built-in load scale.
- Accurate to 1/2 of
1.0%.
- 11 models (1/2-ton
thru 250-ton capacities).
- 5 to 1 safety factor.
- Simple to use.
Applications
Aircraft/Aerospace
Industries
- Delicate, bulky component
assembly landing gear, horizontal stabilizers.
- Engine installation
& removal.
- Component load testing.
Power Generation Industry
- Tear down & rebuild
turbines.
- Nuclear power plant
construction/maintenance.
- Fuel rod placements.
- Turbine bearing changes.
Heavy Industry
- Mill roll changes.
- Bearing inspection.
- Heavy assembly and
teardown.Tool changes.
- Mold changes.
- Machinery loading.
Installations
More than 2000
installations in more than 20 countries worldwide.
Custom
Engineering
Hydra Set Precision
Load Positioners are available with special eyes, hooks, connectors,
longer or shorter stroke lengths and other variables. Ask us
about special requirements.
HYDRA
SET Sales / Support
North America, South and Central
America:
Dale Sorenson
1621 Alton Parkway
Irvine, California 92606
Phone: (949) 250-3200
Voice Mail: X5162
Fax: (949) 261-0529
Email: delmarav@dma.com
Asia Pacific:
Dennis Williams
1621 Alton Parkway
Irvine, California 92606
Phone: (949) 250-3200
Voice Mail: X5303
Fax: (949) 833-3670
Email: delmarav@dma.com
Europe/Middle East:
Jean Verspeurt
Del Mar Avionics (Europe)
Vilvoordelaan Nr. 5
1930 Zaventem
Belgium
Phone: 32-2-720-8055
Fax: 32-2-721-1983
Email: info@delmar.be
All
Service and Tech Support
Dale Sorenson
1621 Alton Parkway
Irvine, California 92606
Phone: (949) 250-3200
Voice Mail: X5162
Fax: (949) 261-0529
Email: delmarav@dma.com
Celeste Schmidt
1621 Alton Parkway
Irvine, California 92606
Phone: (949) 250-3200
Voice Mail: X5170
Fax: (949) 261-0529
Email: delmarav@dma.com
|
MANUAL HYDRA SET®
SYSTEMS, 1/2-TON TO 50-TON CAPACITY
Models O through F are furnished with standard LCD load gauge,
storage stand with caster, standard stroke length of 12 inches
(30.5 cm), protective cover, and 50-foot (15.2 meter) up-and-down
lanyards for remote manual operation. Calibrated gauge accuracy
for Models A through F is one-half of one percent of full scale;
for Model O the accuracy is one percent of full scale. Please
specifiy load gauge calibration in either U.S. tons or metric
kilograms or decanewtons.
|
Catalog
No.
|
Description
|
Capacity |
| Decanewtons |
Kilograms |
U.S.
tons |
| AO-000 |
Model
O |
500 |
500 |
0.5 |
| A1-000
|
Model A |
1,000
|
1,000 |
1.0 |
| A2-000 |
Model
B |
2,500
|
2,500 |
2.5 |
| A5-000 |
Model
C |
5,000 |
5,000 |
5.0 |
| A10-000 |
Model
D |
10,000 |
9,000 |
10.0 |
| A20-000 |
Model
E |
20,000 |
18,000 |
20.0 |
| A25-000 |
Model
ES |
25,000 |
25,000 |
25.0 |
| A50-000 |
Model
F |
50,000 |
50,000 |
50.0 |
ELECTRO-HYDRAULIC
HYDRA SET SYSTEMS, 75-TON TO 250-TON CAPACITY
Electro-hydraulic operation, complete with a Remote Control
Console with built-in electronic digital displays of linear
travel and weight, 100-foot (30.5 meter) control cable, 10-foot
(3 meter) power cord, storage stand with casters, and protective
covers for both the Hydra-Set system and the Remote Control
Console.
Catalog
No. |
Description
|
Capacity |
| Newtons |
Kilograms
|
U.S.
tons |
| 16551 |
Model
DHS-75 |
667,000 |
68,000 |
75 |
| 16552 |
Model
DHS-150 |
1,334,000
|
136,000
|
150 |
| 16553 |
Model
DHS-250 |
2,000,000
|
227,000
|
250 |
ACCESSORIES
FOR HYDRA SET SYSTEMS
| Catalog
No. |
Description
|
| CC1-400 |
Remote
Control Console
Includes standard fail-safe and gauge-saver features, built
electronic linear display, electronic weight display, hoses
and accessory kit. |
| 19311 |
Electronic
Remote Digital Display and Transmitter
Electronically indicates linear travel resolution to 0.0005
in. (0.0127 mm) including cable. |
| 220101 |
Electronic
Remote Digital Display and Transducer
Electronically indicates weight to within 1/2 inch of 1%
of full scale reading. Includes dual set-point capability
and remote cable. |
| |
Metric
Load Gauge
Enables any Hydra Set to be factory-calibrated in metric
units or in decanewtons. |
| |
Positive
Fluid Retention Hydra Set Systems (PFRS)
For systems that are fully encapsulated for clean room applications,
consult the factory. |
| |
Hook
Rotation
The load can be rotated 360 degrees in either direction
in a plane perpendicular to linear travel by manipulation
of the hook rotation control on the remote control console
(available as an option on Model DHS-250 only). |
|
